Main features

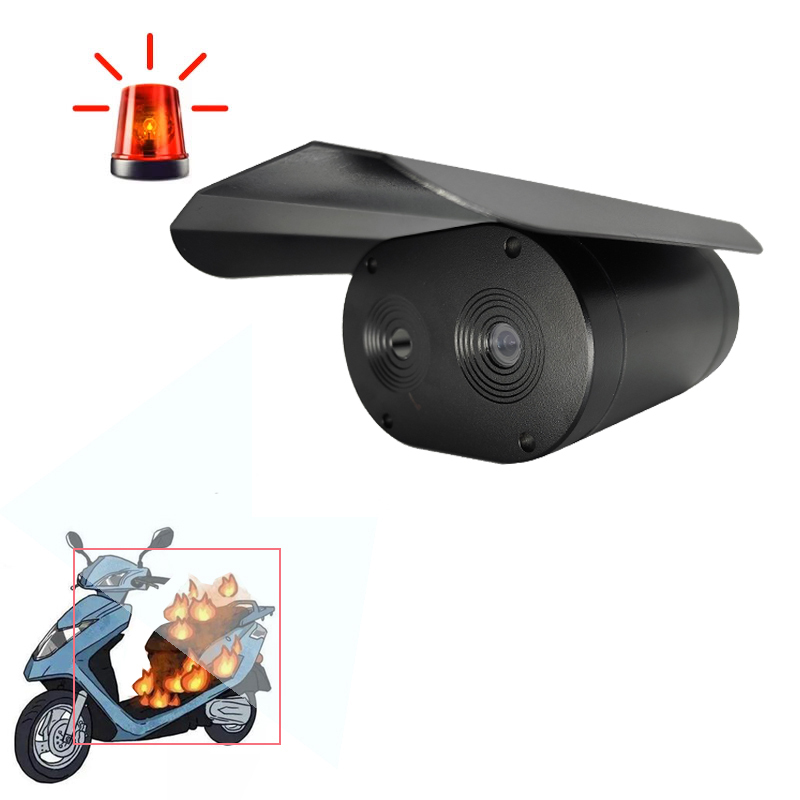

LKG-FDT1194M integrates high-sensitivity infrared camera high-definition visible light camera, high-performance temperature measurement engine, non-medical, artificial intelligence drive, automatic alarm, visualization platform, high-precision thermal imaging detection system.
It is based on artificial intelligence algorithm and infrared thermal imaging temperature measurement technology, which can accurately display the highest temperature value.
Technical Specs
|
Visible light camera |
|
|
Resolution |
4MP |
|
imaging sensor |
GC4653 1/3” |
|
image device |
CMOS |
|
Thermal camera |
|
|
Types of detectors |
Vanadium oxide uncooled type detector |
|
resolution ratio |
256 * 192 High sensitivity detector, supporting contrast regulation |
|
The lens focal length |
3.8mm,6.2mm, 10mm is optional |
|
Pixel element spacing |
12um |
|
Temperature measurement range |
0 ℃-550 ℃ |
|
temperature measurement accuracy |
± 2℃ or ± 2% of readings, the maximum value |
|
Work band |
8～14 um |
|
prober NETD |
≤60mK （F/1,300K, 50Hz） |
|
frame frequency |
15 Hz |
|
Field of view angle (calculated value) |
50°（H） × 37.2（V），63.6°（D）° |
|
Main board parameters |
|
|
CPU |
Dual-core A53@1.2Ghz |
|
internal storage |
1GB |
|
Flash |
128MB |
|
supply electricity |
12V /2A |
|
network |
RJ45 |
|
Other parameters |
|
|
working temperature |
-20℃~80℃ |
|
Network port |
RJ45 (optional 4G) |
|
Installation environment |
Indoor or outdoor |
|
Installation Mode |
Wall-mounted and Ceiling |
