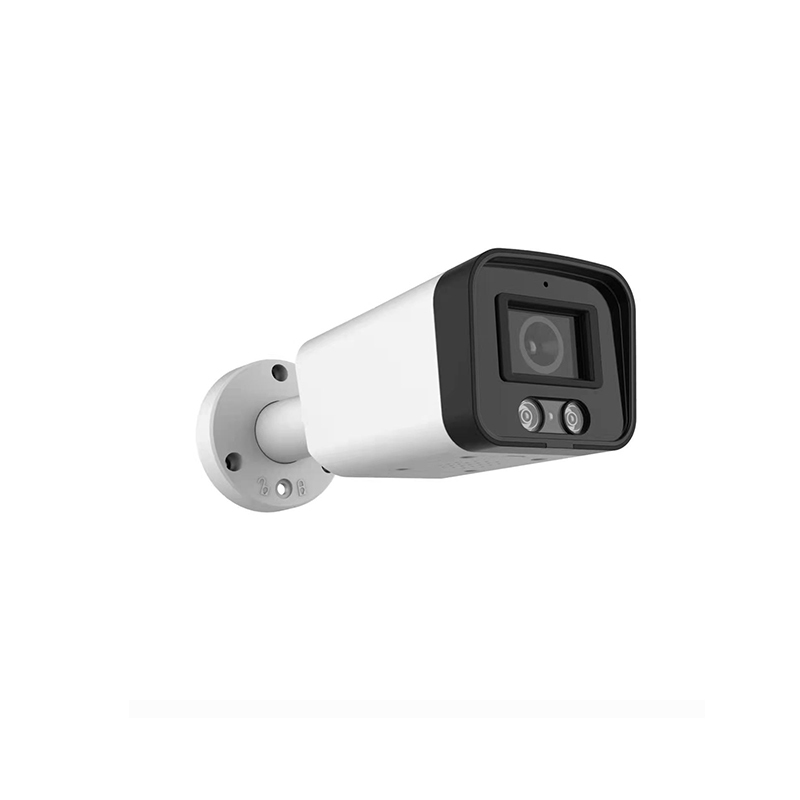

Outdoor Waterproof 8MP Bullet IP Camera

  • Outdoor Waterproof 8MP Bullet IP  Camera

SPECIFICATION

Main Features
 Super Starlight HD 3.6mm Lens

 Night vision distance: 15-20 metersIR

Exclusive of IP configuration and IP conflict;
 Less latency, better real time effect by lightweight protocol stack

H.265(high definition
Conforms to ONVIF2.6 and Private protocol with XMEYE HIKVISION NVR
Support mobile phone APP,IE,client , Platform management software surveillance

DC12V / POE



Hardware

Module

FH8852 DSP+1/2.9"4MP CMOS GC4053

LUX

COLOR 0.01[email protected]; B/W 0.001[email protected];

S/N

≥50db(AGC OFF)

WDR

DWDR; 80db

Port

Audio Input

1CH MIC Input

Audio Output

1CH Output, Speaker Optional

Light Type

CDS IR LED/Warm LED/White LED (Support PWM)

IO port

IR CUT, (optional 1CH RESET, Alarm In, Alarm Out)

Others

Extra Motorized Zoom Auto Focus Lens Optional

Video Coding

Coding Format

H.265/H.264

Resolution

Main Steam

2560*1440 , 1-30FPS/S

2304*12961920*10801280*720, 1-30FPS/S

Sub steam

704*576800*448640*480640*360352*2881-30FPS/S

Video Coding Compression

128Kbps-8192bps continuous adjustable

Subtitle Overlay



Support Channel Name, Date & Time, Resolution & 4 lines characters adding

Data Transmission &Storage

Data  Record

Video,picture

Storage Method

Cycling Recording, Alarm Recording

Alarm Transfer

IO output, browser, management software

Protocol

ONVIF

Mobile

                                 Support IOS, Android

Browser

Support IE6.0 and above browser(insert Web Server)

Mobile Client

Support iPhoneiPadAndroid

Temperature

-30℃ - +60℃

Humidity

0% - 90%

Power

DC12V /110mA

power

1.3W
