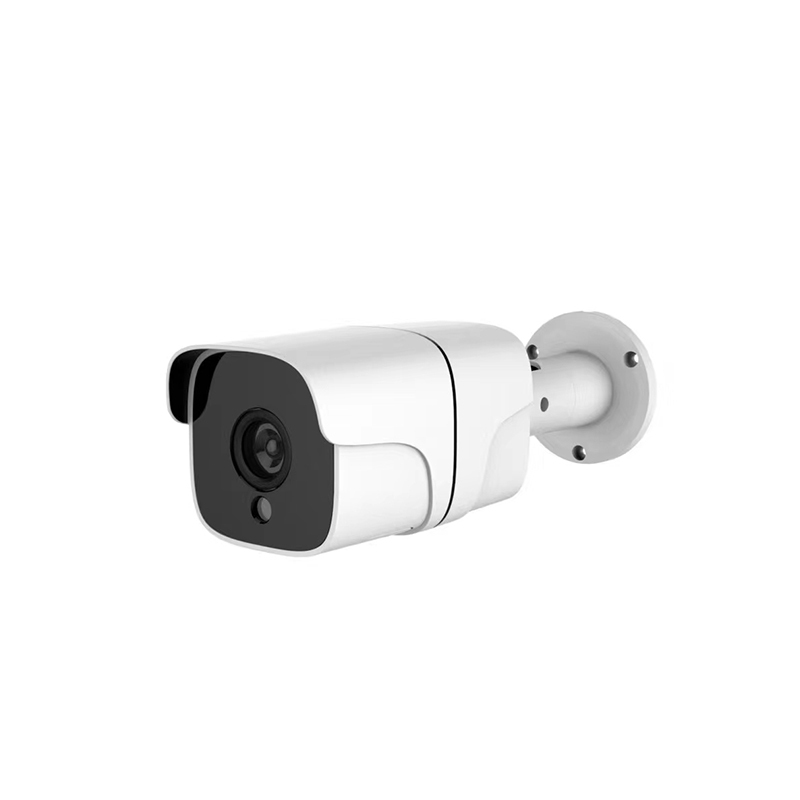

2MP 4MP 5MP 8MP Custom Camara Oem Ip Camera Open Sdk Manufacturer with API HTTP WEBSOCKET MQTT RTMP WebRTC Outdoor POE ON-VIF WebRTC RTSP RTMP with SDK API For your software Integration With Your Own Server
1. 2MP 4MP 5MP 8MP High Resolution
2. Inbuilt POE
3. 2.8mm or 3.6mm or 6mm fixed lens
4. Infrared black&white night vision or color night vision
5. Bullet camera casing or Dome casing optional
6. Firmware customization according to your requirements.
7. Provide SDK/API/COMM protocol and free technical support.
If you want to sell camera with your own software/app/server, Welcome to integrate our camera
Main Features
◆ Super Starlight HD 3.6mm Lens
◆ Night vision distance: 15-20 meters（IR）
◆Exclusive of IP configuration and IP conflict;
◆ Less latency, better real time effect by lightweight protocol stack
◆H.265(high definition）
◆Conforms to ONVIF2.6 and Private protocol with XMEYE HIKVISION NVR
◆Support mobile phone APP,IE,client , Platform management software surveillance
◆DC12V / POE
|
Hardware |
|||
|
Module |
FH8852 DSP+1/2.9"4MP CMOS GC4053 |
||
|
LUX |
COLOR 0.01Lux@F1.2; B/W 0.001Lux@F1.2; |
||
|
S/N |
≥50db(AGC OFF) |
||
|
WDR |
DWDR; ＞80db |
||
|
Port |
|||
|
Audio Input |
1CH MIC Input |
||
|
Audio Output |
1CH Output, Speaker Optional |
||
|
Light Type |
CDS IR LED/Warm LED/White LED (Support PWM) |
||
|
IO port |
IR CUT, (optional 1CH RESET, Alarm In, Alarm Out) |
||
|
Others |
Extra Motorized Zoom Auto Focus Lens Optional |
||
|
Video Coding |
|||
|
Coding Format |
H.265/H.264 |
||
|
Resolution |
Main Steam |
2560*1440 , 1-30FPS/S |
|
|
2304*1296、1920*1080、1280*720, 1-30FPS/S |
|||
|
Sub steam |
704*576、800*448、640*480、640*360、352*288，1-30FPS/S |
||
|
Video Coding Compression |
128Kbps-8192bps continuous adjustable |
||
|
Subtitle Overlay
|
Support Channel Name, Date & Time, Resolution & 4 lines characters adding |
||
|
Data Transmission &Storage |
|||
|
Data Record |
Video,picture |
||
|
Storage Method |
Cycling Recording, Alarm Recording |
||
|
Alarm Transfer |
IO output, browser, management software |
||
|
Protocol |
ONVIF |
||
|
Mobile |
Support IOS, Android |
||
|
Browser |
Support IE6.0 and above browser(insert Web Server) |
||
|
Mobile Client |
Support iPhone、iPad、Android |
||
|
Temperature |
-30℃ - +60℃ |
||
|
Humidity |
0% - 90% |
||
|
Power |
DC12V /110mA |
||
|
power |
1.3W |
||
