Most of commercial camera PCB modules on the market are highly locked down. They provide only fixed functions, no SSH access, closed firmware, and do not allow developers to deploy custom ONNX or YOLO vision models, which greatly limits secondary development and commercial mass production.
We provide a series of open-edge AI IPC modules and full SDK solutions built on Rockchip and Hisilicon chips, specially designed for custom edge vision projects.
Key advantages for development teams:

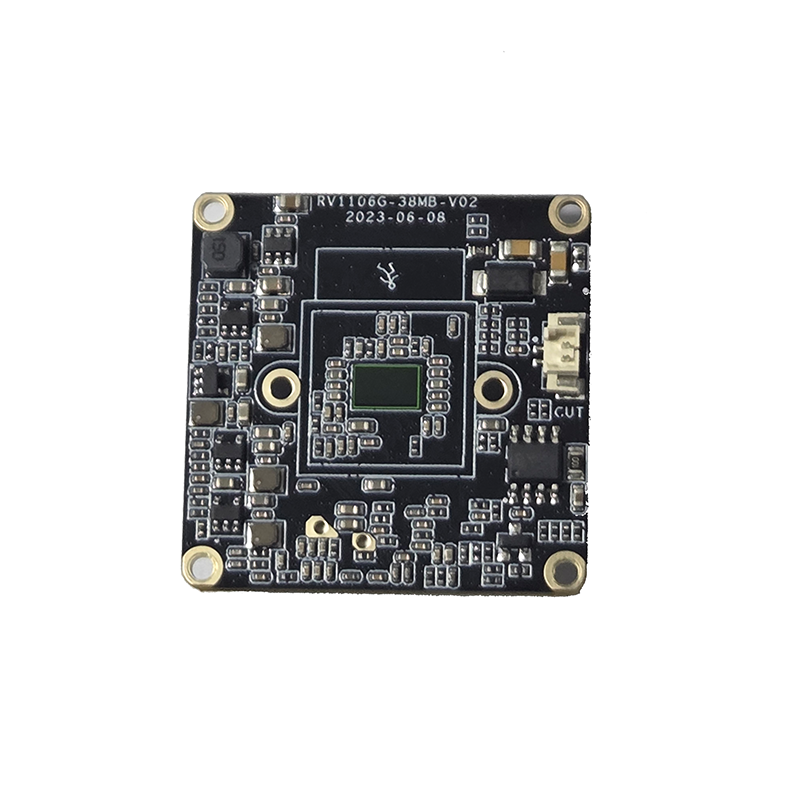

5MP ROCKCHIPS RV1106 1T NPU CCTV Security Surveillance Camera PCB Board
with Linux SDK to build your own firmware or deploy your own AI model.
Most of commercial camera PCB modules on the market are highly locked down. They provide only fixed functions, no SSH access, closed firmware, and do not allow developers to deploy custom ONNX or YOLO vision models, which greatly limits secondary development and commercial mass production.
We provide a series of open-edge AI IPC modules and full SDK solutions built on Rockchip and Hisilicon chips, specially designed for custom edge vision projects.
Key advantages for development teams:
Our modules are widely used in retail analytics, people counting, industrial defect detection, and private security edge devices.
If your team is looking for a fully open, customizable, mass-producible AI camera hardware solution
We provide complete datasheets, SDK documents and technical support for project evaluation.
|
SoC |
RV1106 ARM Cortex-A7, 1.2GH,1T NPU |
|
Sensor |
1/2.7" Progressive Scan CMOS SC235AI |
|
DDR |
256MB |
|
Flash |
128MB |
|
WDR |
100DB |
|
Min illumination |
color：0.0001Lux@F2.0(AGC ON) ， Black&white ：0.0001Lux(IR ON) |
|
Mainstream |
30 fps@（1920 × 1080） |
|
Substream |
30 fps@（704 ×576 ，640 ×480） |
|
Encode format |
H.265/H.264 |
|
Encode bit |
32 Kbps~ 16 Mbps |
|
Enhanced Image |
Backlight compensation, strong light suppression, 2D/3D digital noise reduction, fog penetration, |
|
Pin for microphone |
Yes |
|
Pin for speaker |
Extention board |
|
Image setting |
Rotation, saturation, brightness, contrast, sharpness, AGC, and white balance support for day/night conversion |
|
Pin for IRCUT |
Yes |
|
Pin for IR/white Led |
Yes |
|
Network protocol |
ONVIF (profile S), CGI,HTTP,GB28181TCP/IP,HTTP, FTP,DHCP,RTP,RTSP,NTP，SMTP, |
|
Working temperature |
-30℃ - 60℃ |
|
Power input |
DC12V |
