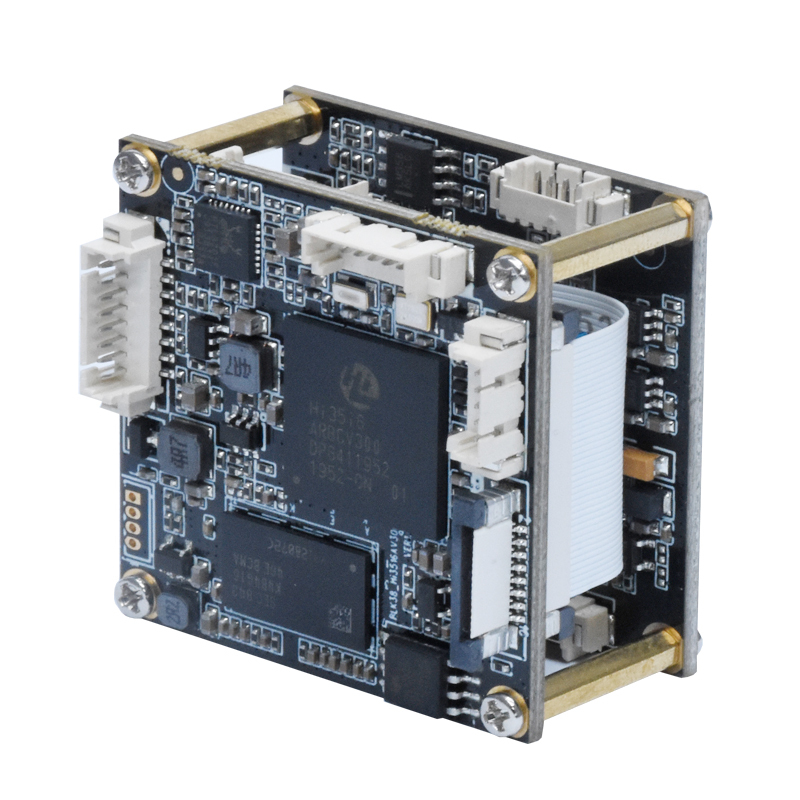

8MP IP Camera Module



Offer comm protocol for your server software integration

Built-in deep smart-learning face algorithm, automatically extract face features and self-learn

Face capture mode to display face name in OSD

Support many catpure mode: quick,interval,leave and capture times can be set

Support vertical and horizontal capture angle can be set

Support detect Max 32 faces per frame

Support 30*30-700*700 pixel face can be detected

Support upload face photo, human body photo, fullscreen shot, and image quality can be set

Support Digital WDR for HD face exposure

Support 2 Capture mode: backlight mode and normal mode

  • 8MP IP Camera Module
SPECIFICATION

n Technical Specs



MainChip

Ssc338g, 8GB eMMC

Sensor

1/2.8" Progressive Scan CMOS IMX335

Min illumination

color:[email protected](AGC ON),Black&white:0Lux(IR ON)

WDR

Digital WDR

Lens

3.6mm(default), 2.8-12mm(optional), motorized lens(optional)

Main stream resolution

25fps@(2592×1944,2560× 1440)

Sub stream resolution

25fps@(704×576)

Encode format

H.265+/H.265/H.264

Encode bit

32 Kbps~16 Mbps

H.264 profile

BaseLine Profile/Main Profile/High Profile

H.265 profile

Main Profile

Bit Rate control

·

Fixed rate, variable rate

·



Character superimposing.

Support

Enhanced Image

·

Backlight compensation, strong light suppression, 3D digital noise reduction, fog penetration

·



Image setting

Rotation, saturation, brightness, contrast, sharpness, AGC, and white balance support for day/night conversion

Network protocol

HTTP、HTTPS、TCP/IP、UDP、RTP、FTP、RTCP、RTSP、NTP、DHCP、DNS、DDNS、SNMP、SSL/TLS、WebSocket、UPNP、PPPOE,ONVIF

Browser

Plugin for IE:IE10,IE11

Local preview:Edge,Chrome,Firefox

Waterproof

IP66

Power input

DC12V / POE(optional)
