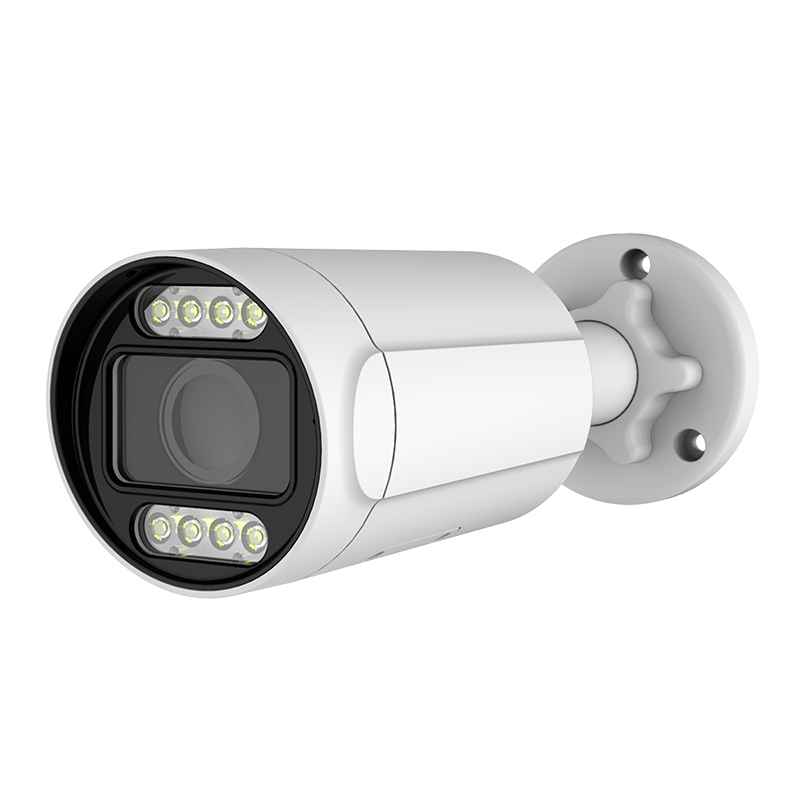

Outdoor 5MP Multi Face Detection and Capture AI Camera with API JSON protocol
Main Features:
|
1. Offer JSON protocol for your server software integration 2. Built-in deep smart-learning face algorithm, automatically extract face features and self-learn 3. Mini Small size to install easily 4. Support many catpure mode: quick,interval,leave and capture times can be set； 5. Support vertical and horizontal capture angle can be set |
|
6. Support detect Max 15 faces per frame； 7. Support 30*30-300*300 pixel face can be detected； 8. Support upload face photo, human body photo, fullscreen shot, and image quality can be set； 9. Support Digital WDR for HD face exposure； 10. Support 2 Capture mode: backlight mode and normal mode； |
|
Technical Specs |
|
|
|
|
|
MainChip |
Hi3516CV610 ARM Cortex-A7 MP2@950MHz， 1GB DDR3 |
|
Sensor |
1/2.7" Progressive Scan CMOS SC500AI |
|
Min illumination |
color：0.01Lux@F1.2(AGC ON)，Black&white：0Lux(IR ON) |
|
WDR |
Digital WDR |
|
Fixed Lens |
6mm(default)/8mm/10mm/12mm |
|
4G/WiFi |
Optional |
|
Main stream resolution |
25 fps@（ 2880×1620 ，2560 × 1440）30 fps@（ 1920 × 1080） |
|
Sub stream resolution |
30fps@（704×576） |
|
Encode format |
H.265+/H.265/H.264 |
|
Encode bit |
32 Kbps~16 Mbps |
|
H.264 profile |
BaseLine Profile/Main Profile/High Profile |
|
H.265 profile |
Main Profile |
|
Bit Rate control |
· Fixed rate, variable rate ·
|
|
IR Night vision |
8pcs IR led |
|
Enhanced Image |
· Backlight compensation, strong light suppression, 3D digital noise reduction, fog penetration ·
|
|
Image setting |
Rotation, saturation, brightness, contrast, sharpness, AGC, and white balance support for day/night conversion |
|
Network protocol |
HTTP、HTTPS、TCP/IP、UDP、RTP、FTP、RTCP、RTSP、RTMP, WEBRTC,NTP、DHCP、DNS、DDNS、SNMP、SSL/TLS、WebSocket、UPNP、PPPOE,ONVIF |
|
Browser |
Plugin for IE：IE10，IE11 Local preview：Edge，Chrome，Firefox |
|
Waterproof |
IP67 |
|
Power input |
DC12V / POE |
